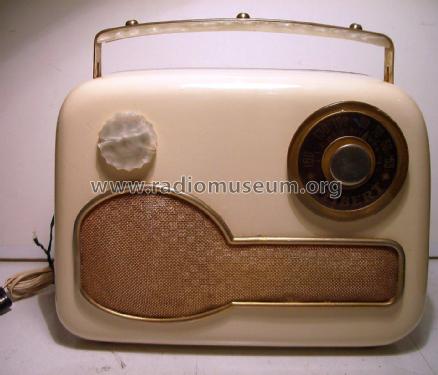

Portatil. Pilas y Red. Asa de nacar. Caja de madera Desconocido - Unknown 1
Stibert (Marca), Ricardo Fernández; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Stibert (Marca), Ricardo Fernández; Barcelona
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 361051
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 125; Baterias 90+1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Portatil. Pilas y Red. Asa de nacar. Caja de madera Desconocido - Unknown 1 - Stibert Marca, Ricardo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 200 x 100 mm / 10.2 x 7.9 x 3.9 inch
- Author
- Model page created by Josep Cornado-Albagés. See "Data change" for further contributors.
