• Country
• Germany

• Manufacturer / Brand
• Tefi-Apparatebau; Porz bei Köln

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17277

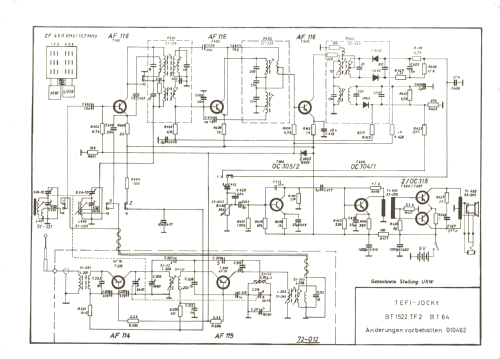

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Jockey - Tefi-Apparatebau; Porz bei

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 230 x 100 mm / 11.8 x 9.1 x 3.9 inch

• Notes
• 9 Trans.; 4 Dioden; Ende Produktion!

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 113 models, 101 with images and 98 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tefi-Apparatebau; Porz bei Köln
