• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22347

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 EC92 ECH81 EF89 EM84 EABC80 ECC83 ECL82 ECL82

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

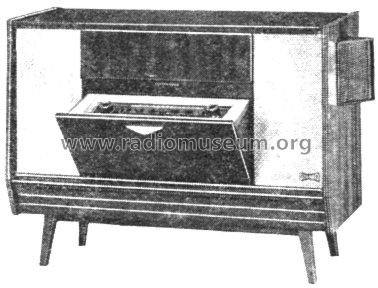

• Model: Dominante Hi-Fi Stereo 2094 - Telefunken Deutschland TFK,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1180 x 850 x 420 mm / 46.5 x 33.5 x 16.5 inch

• Notes
• Phono-Chassis = Telefunken 10 Plattenwechsler TW 501 (mit Stereokapsel SR 2, hochohmig) 110 V - 50 Hz.

• Net weight (2.2 lb = 1 kg)
• 51 kg / 112 lb 5.4 oz (112.335 lb)

• Price in first year of sale
• 948.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
