- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127496

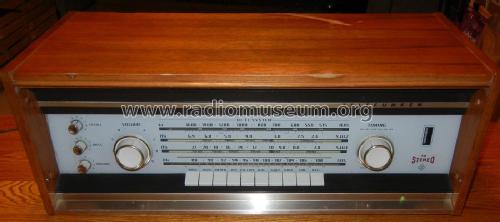

Front flip-down door closed. Teak veneer.

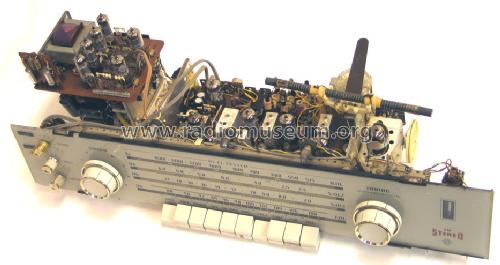

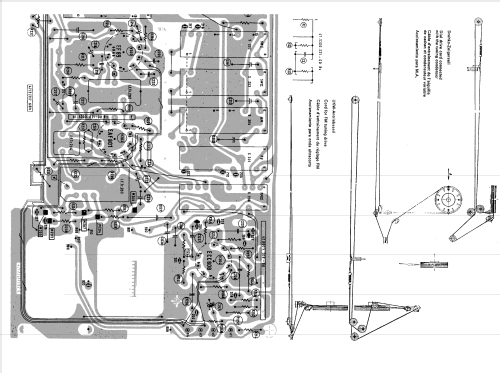

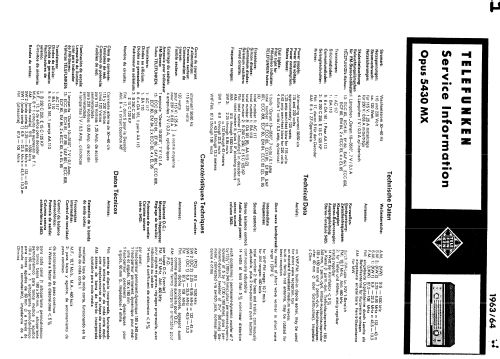

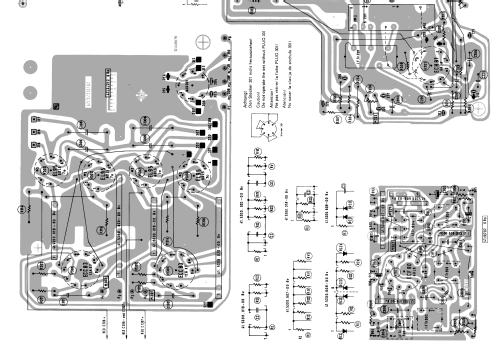

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 1
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 16 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Opus 5430MX Hi-Fi - Telefunken Deutschland TFK,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 25.6 x 10 x 10.6 inch / 650 x 254 x 269 mm
- Notes
-
Band coverage: AM 515-1600 kHz; SW1 2.3 - 6.9 MHz; SW2 7.0 - 22 MHz; FM 88-108 MHz. Teak cabinet with slide out / fold down front door to cover panel.
See also the German domestic model Opus 2430 HiFi with FM covering up to 104 MHz and LW instead of one SW range.
- Literature/Schematics (4)
- -- Original-techn. papers.
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
- Other Models
-
Here you find 3545 models, 3125 with images and 2094 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Collections
The model Opus is part of the collections of the following members.
Forum contributions about this model: Telefunken: Opus 5430MX Hi-Fi
Threads: 3 | Posts: 9
I have the schematics for the Telefunken Opus mx5430. Very confused about how to get it uploaded.
They exist in jpg format and pdf format. Can you help me get them uploaded.
James McBride, 24.Jan.12
Hi everyone,
I just bought this superb set. No hum and a very good sound quality. However I do have one problem with FM receiving. There seems to be a "shadow" station and even with AFC pushed in, frequencies will slide or "jump" for no apparent reason or when I get closer to the set. I am still a newbie (that is I don't have much equipment to make sophisticated tests) but my problem maybe an easy one to solve. Any ideas /tips are welcome !
Alain Dufour, 03.Jul.09
