Kleinsuper Lotos UKW-MW (Export) W

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476870) Radio

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476871) Radio

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476872) Radio

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476873) Radio

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476874) Radio

Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1476875) Radio
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1139866) Radio Kleinsuper Lotos UKW-MW W; Elektronska (ID = 117381) Radio
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 117380) Radio Kleinsuper Lotos UKW-MW W; Elektronska (ID = 117379) Radio
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 387710) Radio Kleinsuper Lotos UKW-MW W; Elektronska (ID = 387711) Radio
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1045720) Radio Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1045722) Radio
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1045723) Radio Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1045724) Radio
Use red slider bar for more.
Kleinsuper Lotos UKW-MW W; Elektronska (ID = 1139866) Radio
Elektronska: Kleinsuper Lotos UKW-MW W [Radio] ID = 1139866 933x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kleinsuper Lotos UKW-MW (Export) W, Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EF89 ECL82
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Kleinsuper Lotos UKW-MW W - Elektronska Industrija Ei; Niš
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 180 x 160 mm / 13 x 7.1 x 6.3 inch
Notes

Siehe auch: Kleinsuper Trier.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Elektronska Industrija (Ei); Niš
Here you find 104 models, 96 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Elektronska: Kleinsuper Lotos UKW-MW W
Threads: 2 | Posts: 8
Hits: 2000     Replies: 4
unbekannt: Lotos; Kleinsuper
Berislav Bradaric
03.Aug.06
  1

It's absolutely sure that's word here about model "Lotos" made by "Ei-elektroindustrija".

I have some schematic diagrams for model "Lotos", but use different tubes.

Seems that this model use some kind of his standard "korina" chassis.

If you want, put chassis outside, and make few good photos from different sides.

I will try to find out which type of chassis use this model.

Here is one picture of "Lotos" but with another tube lineup.

Best regards.

Attachments

Ernst Erb
03.Aug.06
  2 Dear Berislav
Well done, good information!
The maker is existing in the data base. Therefore:
Can you please put in a new model Lotos to this maker and load up a bigger picture of your set plus a picture from the rear and from the chassis?

The existing set we should leave for Germany but with a text to explain the facts - and with the name - Lotos (Lolos) - instead of Lotos only. Thi i recommend because the member who has brought in the set was first reading Lolos. Therefore other users will sometimes look for the same ...

It will be interesting to find out sooner or later which organisation did marketing/sales of this model in Germany - and then we can move from "Unknown" to that "Maker"/Brand.
Berislav Bradaric
03.Aug.06
  3

It's done - model uploaded.

About picture - I don't have this model in my collection, I get this picture from another collector.
So I will ask hem to make additional photos if he can.



About maker or organization in Germany who did marketing/sales these models I really can't tell anything.

Best regards.
Ernst Erb
03.Aug.06
  4 Thank you, Berislav, that's perfect. You surely will put a courtesy remark into the picture legend. Maybe your friend can also tell measurements, material and form (?).

Nice to find out the differences between the Lotos which has been exported to Germany and the domestic one. There one finds also a forums article in German which reveils Ei ELEKTRONSKA INDUSTRIJA FABRIKA "NIKOLA TESLA" BEOGRAD as maker. There are also some photos displayed in post 3.
Omer Suleimanagich
04.Aug.06
  5
Out of curiosity, is this radio based on any Philips models that were produced under license by EI Nis(AKA Elektronska Industrija Nis) at the time?

This same company (EI Nis) created the "KT90" power vacuum tube ten years ago for the audio world, and rumor has it , that EI Nis  uses the same equipment that was used for making the famous "smooth plate" Telefunken vacuum tubes.

As for the "Iskra" capacitor (as seen in the German thread) the company still exists in Slovenia, and is very well known for its high quality capacitors made for industrial and commercial use.


Hits: 2070     Replies: 2
unbekannt: Lotos; Kleinsuper ( unbekannte Firma?)
Oswald Bettendorf
01.Aug.06
  1 Hallo zusammen,
in meinem Kleinsuper Lotos sind zwei Aufkleber angebracht.
Einer an der Gehäuseinnenwand und einer auf dem Netztrafo.

Die Aufschrift: Ei ELEKTRONSKA INDUSTRIJA FABRIKA "NIKOLA TESLA" BEOGRAD

Dies dürfte doch die gesuchte Firma sein, die das Gerät gebaut hat?

Gruß Oswald Bettendorf
Arpad Roth † 27.3.17
01.Aug.06
  2 Hallo Herr Bettendorf,

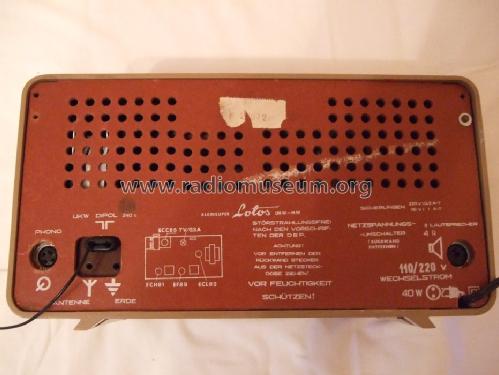

bitte Bild mit Rückwand zeigen, bzw. vergleichen mit vorhandem Bild. Wenn das Modell in Belgrad erzeugt wurde, dann ist es merkwürdig das die Rückwand DEUTSCH beschriftet ist. Trifft das auch bei Ihrem Modell zu?
Das Modell nach Tesla YU zu verschieben wäre möglich.
MfG. Arpad Roth
Oswald Bettendorf
01.Aug.06
  3 Hallo Herr Roth,ich habe mir das "Lotos" noch mal näher angeschaut und Ihnen Bilder gemacht.Es ist eindeutig das gleiche Gerät, wie es im RM unter dem Namen "Lolos" gelistet ist.Die Röhren in meinem Gerät sind von der Fa. ULTRON und die kleinen Kondensatoren, alle in roter Farbe, sind mit einem Stern gestempelt (siehe Foto). Darin steht der Name "ISKRA" oder so ähnlich, ist schlecht zu entziffern.Die Kondensatoren deuten also auch auf Belgrad (rot und mit Stern).Den Aufkleber auf dem Transformator kann man hoffentlich lesen, für den Anderen müßte ich das Chassis ausbauen.Wahrscheinlich hat eine deutsche Fa. die Geräte in Belgrad in Auftrag gegeben.Gruß Oswald Bettendorf

Attachments


Elektronska: Kleinsuper Lotos UKW-MW W
