3 Rørs Lysnetmodtager - 3-tube radio

Unknown - CUSTOM BUILT: Denmark

Data
Forum
Pictures
Collections

  • Year
  • 1930 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 299639

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 127 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 25 cm = 9.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 3 Rørs Lysnetmodtager - 3-tube radio - Unknown - CUSTOM BUILT:
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 360 x 380 x 180 mm / 14.2 x 15 x 7.1 inch
  • Notes

  • No name or model designation is found on the radio. The only text is on the the backside: a) a sign saying 127 V vekselstrøm (127 V alternating current) b) a "stamp" with text "Patentafgift - Modtager 59357" (patent fee - receiver 59357) c) Jord (earth) on the left bushing. In addition the other bushings are numbered 1, 2, 3 from left to right.

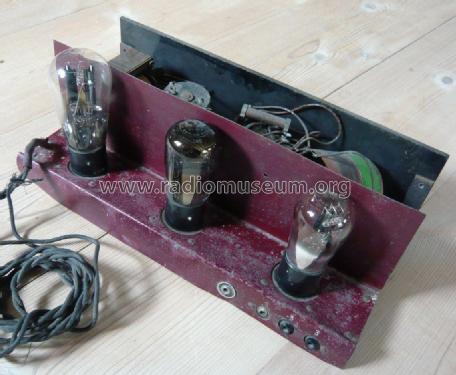

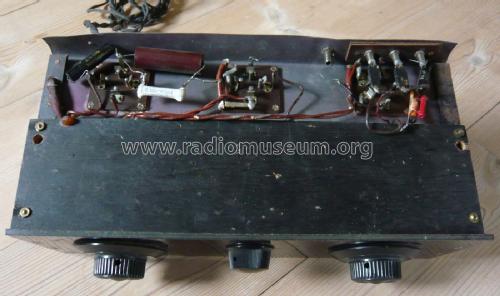

    The radio is a 3 tube regenerative receiver with loudspeaker. It is probably made in Denmark.

    The loudspeaker drive assembly is much like an old headset receiver. An armature is carried by a spring. The distance between the armature and the poles of the electromagnet driven by the output tube is adjustable by a knob on the backside of the cabinet. The cone is connected to the armature by a thin rod. The rim of the cone is free and not glued to a support frame. The loudspeaker is oval 30 x 20 cm.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Morten Avlund. See "Data change" for further contributors.
