• Country
• United States of America (USA)

• Manufacturer / Brand
• Modernair Corporation; Los Angeles, CA

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235280

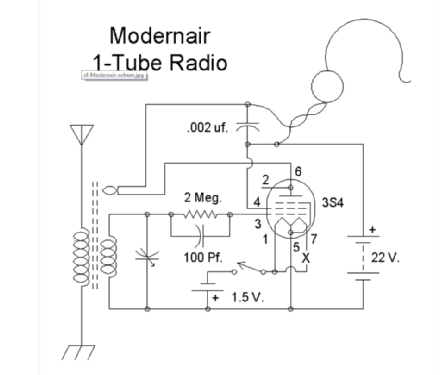

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 3S4

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 22.5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Unknown - Modernair Corporation; Los

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 4.375 x 3 x 3 inch / 111 x 76 x 76 mm

• Notes

• Available in black, ivory or red plastic.

  The name "Modernaire" is a misspelling in Stein's book. The correct name is Modernair.

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 116.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
