Radio-Phonograph Deluxe HiFi

Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842791) Radio Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842792) Radio
Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842793) Radio Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842794) Radio
Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842795) Radio
Use red slider bar for more.
Radio-Phonograph Deluxe HiFi; Unknown - CUSTOM (ID = 1842791) Radio

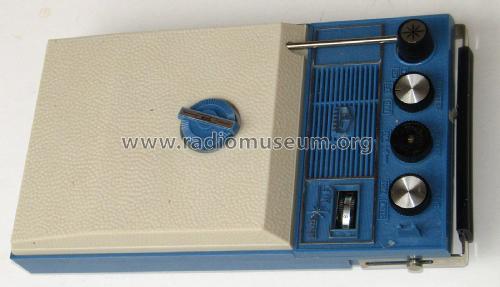

Unknown - CUSTOM: Radio-Phonograph Deluxe HiFi [Radio] ID = 1842791 1400x912
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio-Phonograph Deluxe HiFi, Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Dry Batteries / 3 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Radio-Phonograph Deluxe HiFi - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 145 x 55 x 245 mm / 5.7 x 2.2 x 9.6 inch
Notes

Mit Batterien betriebener Plattenspieler 33/45 UpM  mit AM-Empfänger einfacher Bauart. (Bezeichnung Deluxe HiFi ist irreführend und nicht zutreffend!)

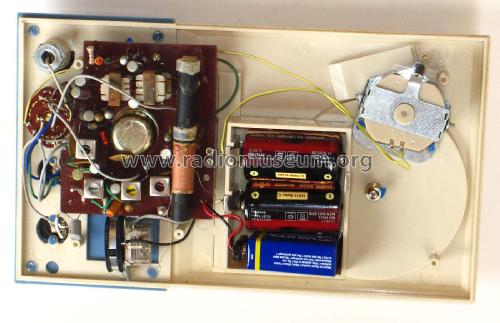

Stromversorgung: 2 Zellen R14 für Plattenspieler-Motor, 9-V-Block für Empfänger/Verstärker.

Net weight (2.2 lb = 1 kg) 0.950 kg / 2 lb 1.5 oz (2.093 lb)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
