Wynford Hall TCM-5500

Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1693080) Radio Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1693079) Radio
Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 600143) Radio Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1693078) Radio
Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1693081) Radio Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1729206) Radio
Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1729207) Radio Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1729208) Radio
Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1729209) Radio Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1729210) Radio
Use red slider bar for more.

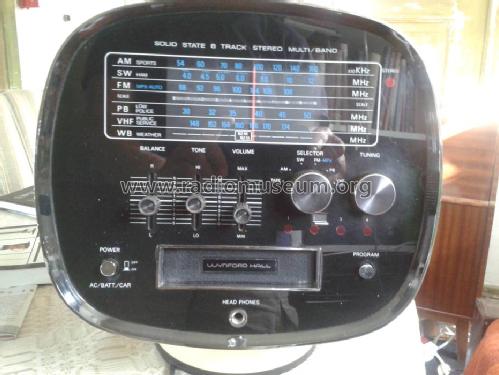

Wynford Hall TCM-5500; Unknown - CUSTOM (ID = 1693080) Radio
Unknown - CUSTOM: Wynford Hall TCM-5500 [Radio] ID = 1693080 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wynford Hall TCM-5500, Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / 117/ 12; 8 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Wynford Hall TCM-5500 - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 11 x 11.75 x 11 inch / 279 x 298 x 279 mm
Notes Wynford Hall TCM-5500, 8 Track Stereo Multi Band AM/SW/FM-MPX/PB/VHF-WB Radio;

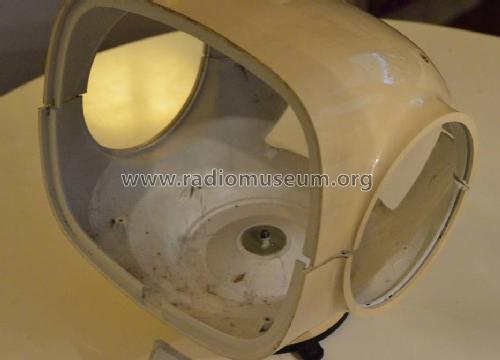

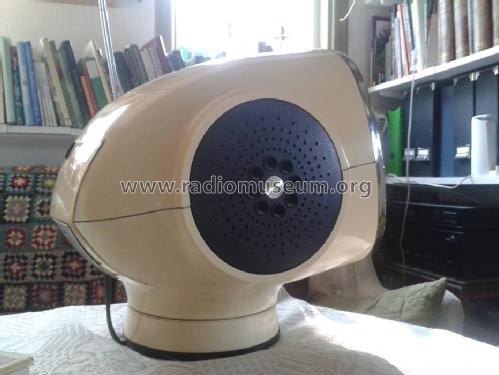

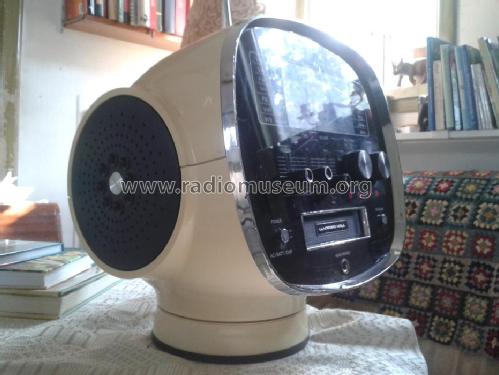

Helmet shaped white portable radio,
SW: 4.0 - 12 MHz,
FM: 88 - 108 MHz,
PB: 30 - 50 MHz,
VHF: 148 - 174 MHz with WB: ~162 MHz,
stereo indicator, 4 IC, balance & tone control, headphones jack, 25 W power consumption, made in Japan, partly similar to "Weltron" radio models.
Collectors' prices

Model page created by a member from A. See "Data change" for further contributors.
