Atlas FM AM 34 PT-S4

Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 284200) Radio
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 347774) Radio Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 372889) Radio
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 372888) Radio Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 347777) Radio
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 347778) Radio Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 347779) Radio
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 372886) Radio Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 372890) Radio
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 1626678) Radio Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 1752604) Radio
Use red slider bar for more.
Atlas FM AM 34 PT-S4; Vanguard; Hospitalet (ID = 347774) Radio

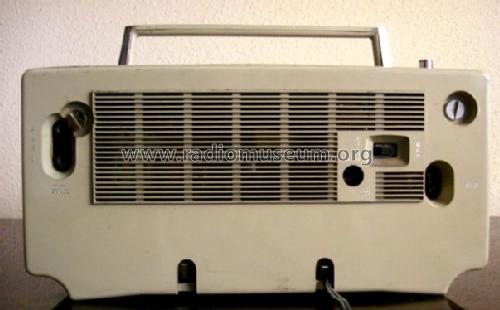

Vanguard; Hospitalet: Atlas FM AM 34 PT-S4 [Radio] ID = 347774 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlas FM AM 34 PT-S4, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF114 AF115 AF116 AF116 AF116 AF116 AC126 AC126 AC128 AC128 OA70 OA70 OA79
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 125; 220 / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Atlas FM AM 34 PT-S4 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Atlas FM AM is seen on the actual set, Atlas FM is mentioned in the catalogue.

Price in first year of sale 3'597.00 ESP
Collectors' prices

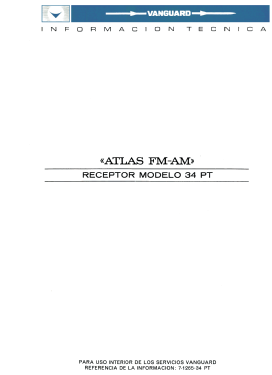

Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Vanguard; Hospitalet de Llobregat
Here you find 95 models, 65 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
