Motorette 210/7800

Motorette 210/7800; Akkord-Radio + (ID = 843897) Radio

Motorette 210/7800; Akkord-Radio + (ID = 843898) Radio

Motorette 210/7800; Akkord-Radio + (ID = 106345) Radio

Motorette 210/7800; Akkord-Radio + (ID = 106346) Radio
Motorette 210/7800; Akkord-Radio + (ID = 28237) Radio Motorette 210/7800; Akkord-Radio + (ID = 414578) Radio
Motorette 210/7800; Akkord-Radio + (ID = 414579) Radio Motorette 210/7800; Akkord-Radio + (ID = 1008074) Radio
Motorette 210/7800; Akkord-Radio + (ID = 1008076) Radio Motorette 210/7800; Akkord-Radio + (ID = 1008079) Radio
Motorette 210/7800; Akkord-Radio + (ID = 1197057) Radio Motorette 210/7800; Akkord-Radio + (ID = 1776172) Radio
Motorette 210/7800; Akkord-Radio + (ID = 1776173) Radio
Use red slider bar for more.
Motorette 210/7800; Akkord-Radio + (ID = 28237) Radio

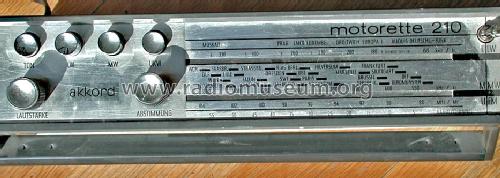

Akkord-Radio +: Motorette 210/7800 [Radio] ID = 28237 600x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model Motorette 210/7800, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Motorette 210/7800 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 260 x 190 x 60 mm / 10.2 x 7.5 x 2.4 inch
Notes Transistoren: 2× BF235, 2× BF234, 2× BF167, BF199F, BC172, BSY51, AD161, AD162.
Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung 4 W. Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Collectors' prices
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1970/1971
