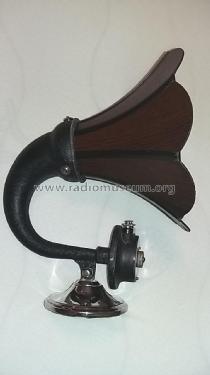

New Junior de luxe AR 114

New Junior de luxe AR 114; Amplion, Alfred (ID = 53256) Speaker-P New Junior de luxe AR 114; Amplion, Alfred (ID = 942742) Speaker-P
New Junior de luxe AR 114; Amplion, Alfred (ID = 942744) Speaker-P New Junior de luxe AR 114; Amplion, Alfred (ID = 942745) Speaker-P
New Junior de luxe AR 114; Amplion, Alfred (ID = 942746) Speaker-P New Junior de luxe AR 114; Amplion, Alfred (ID = 1297559) Speaker-P
New Junior de luxe AR 114; Amplion, Alfred (ID = 1297561) Speaker-P
Use red slider bar for more.
New Junior de luxe AR 114; Amplion, Alfred (ID = 53256) Speaker-P
Amplion, Alfred: New Junior de luxe AR 114 [Speaker-P] ID = 53256 507x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model New Junior de luxe AR 114, Amplion, Alfred Graham; GB (see also USA)

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1925 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: New Junior de luxe AR 114 - Amplion, Alfred Graham; GB see
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10 x 12 x 11.5 inch / 254 x 305 x 292 mm
Notes oak or mahogany trumpet; 2000 ohms; there is also the 120 ohm model AR 113.
Collectors' prices
Mentioned in Brown Brs. Catalog 1925

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
