Alpha T-2700

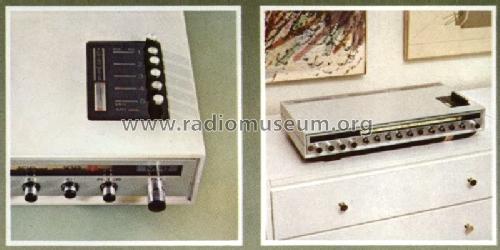

Alpha T-2700; Arena, Horsens (ID = 489914) Radio Alpha T-2700; Arena, Horsens (ID = 489915) Radio
Use red slider bar for more.
Alpha T-2700; Arena, Horsens (ID = 489914) Radio
Arena, Horsens: Alpha T-2700 [Radio] ID = 489914 907x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpha T-2700, Arena, Horsens:
Original prospekt in 1972.

Country:  Denmark
Manufacturer / Brand:  Arena, Horsens
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 234 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Alpha T-2700 - Arena, Horsens
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 92 x 248 mm / 19.7 x 3.6 x 9.8 inch
Notes The Arena model Stereo T-2600 and T-2700 feature "Pre-O-Mat-Tuning": Push-button tuning on the FM band, 5 favourite programmes may be pretuned and can then be selected by merely pressing a button. Built-in AFC (automatic frequency control) which locks-in stations and keeps them in tune secures maximum benefit of the Pre-O-Mat. The T2600 has almost the same specifications as the T2700 (two silicon transistors less, measurement 500 x 92 x 248 mm), but it is a complete radio receiver, with short (FB = 1600-4400 kHz (incl. tropic band) and KB = 5800-6300 kHz = 49 m), medium (MB), long-wave (LB), and FM bands. 2 x 20 watts sine-wave on 3.2 ohms. 2 MOSFETs for RF tuner transistors on FM, 38 silicons, 26 diodes.. FM = diode tuning. Built-in tuning meter. Cabinet in Teak, rosewood, light oak.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Ernst Erb. See "Data change" for further contributors.
