Silver Eagle TUP-9-D-104-SE

Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 71477) Microphone/PU Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 71478) Microphone/PU
Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215435) Microphone/PU Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215436) Microphone/PU
Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215437) Microphone/PU Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215438) Microphone/PU
Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215439) Microphone/PU Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215440) Microphone/PU
Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215441) Microphone/PU Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 1215442) Microphone/PU
Use red slider bar for more.
Silver Eagle TUP-9-D-104-SE; Astatic Corp.; (ID = 71477) Microphone/PU
Astatic Corp.;: Silver Eagle TUP-9-D-104-SE [Microphone/PU] ID = 71477 203x449
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silver Eagle TUP-9-D-104-SE, Astatic Corp.; Conneaut (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Astatic Corp.; Conneaut (OH)
alternative name

Omnitronics LLC
Year: 1970–1999 ?? Type: Microphone or Pick-up
Semiconductors (the count is only for transistors) 2:
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Silver Eagle TUP-9-D-104-SE - Astatic Corp.; Conneaut OH
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 135 x 305 x 135 mm / 5.3 x 12 x 5.3 inch

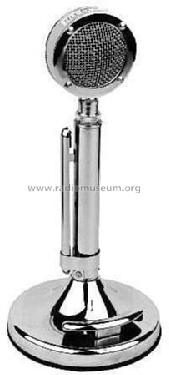

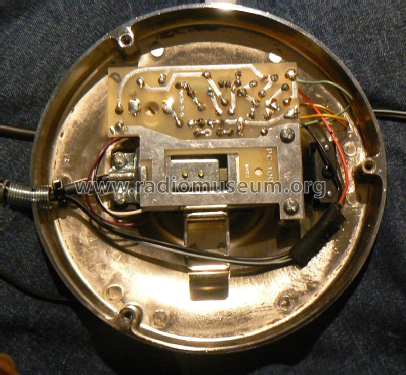

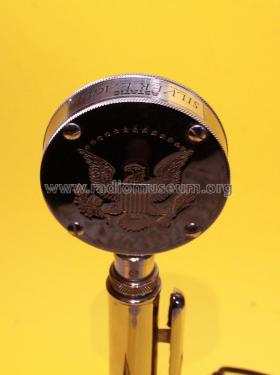

Notes Chrome finnish high-Z xtal desk-top microphone with PTT. Back side of microphone housing (D-104-SE) US state-seal (Eagle). Stand TUP-9-SE with built-in preamplifier. Good for old AM/SSB tube transmitters!
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 140.00 $
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.

All listed radios etc. from Astatic Corp.; Conneaut (OH)
Here you find 25 models, 24 with images and 5 with schematics.
