• Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33773

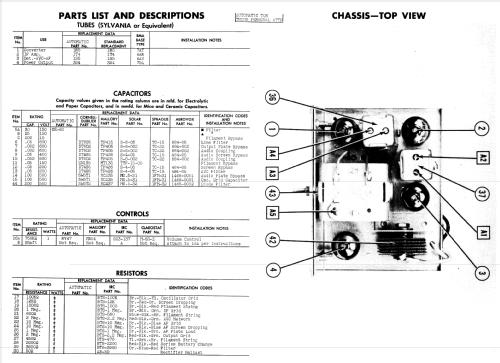

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 110-120/ 67.5 & 7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.7 cm = 3.4 inch
  • Material
  • Various materials
  • from Radiomuseum.org

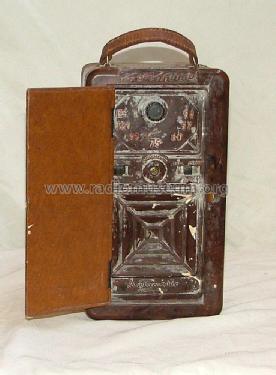

  • Model: A.T.T.P. "Tom Thumb" - Automatic Radio Mfg. Co.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 120 x 240 x 120 mm / 4.7 x 9.4 x 4.7 inch
  • Notes
  • Selenium Rectifier.
  • Price in first year of sale
  • 47.00 USD
  • External source of data
  • Ernst Erb
  • Circuit diagram reference

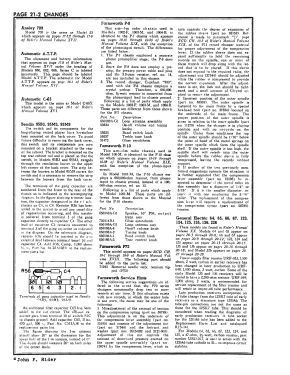

  • Rider's Perpetual, Volume 21, Copyright 1950
