• Year
  • 1959 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 146781

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 1
  • Main principle
  • Superheterodyne (common); ZF/IF 455 or 265 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FA-219 - Automatic Radio Mfg. Co.;
  • Shape
  • Chassis only or for «building in»
  • Notes

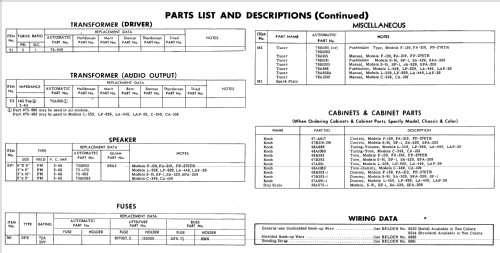

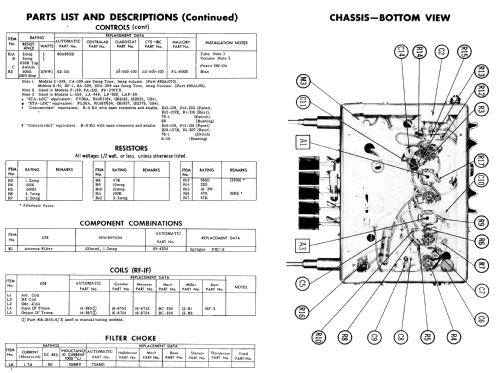

  • Battery operated 4 tube, 1 transistor automobile AM receiver. Sams photofact set 486 folder 6 date 5-60 features the Automatic Radio models C-349, CA-109 (for 1959 Chevrolet), F-139, FA-219, FP-276TR (for 1959 Ford), L-559, LA-449, LAP-29, LP-929 (for 1959 Studebaker Lark), RT-7D (universal type), S-91, SA-529, SP-1, SPA-209 (for 1958/59 Simca Aronde) as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
