• Year
  • 1980
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 141622

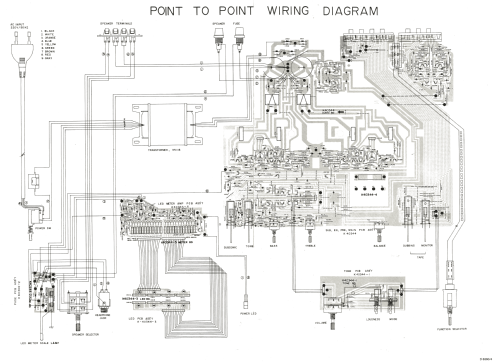

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: D6360 - BASF, Badische Anilin- & Soda-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 426 x 100 x 300 mm / 16.8 x 3.9 x 11.8 inch
  • Notes
  • HiFi-Vollverstärker mit 2× 60 Watt Sinus (an 4 Ohm). Eingänge: 2 TB-Eingänge für Überspielungen von Band zu Band, Phono, Tuner und AUX. Leistungsbandbreite 0-100000 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
