• Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 34260

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 6D121 Ch= Series A - Belmont Radio Corp. B.R.C.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 13 x 7.5 x 6.5 inch / 330 x 191 x 165 mm
  • Notes

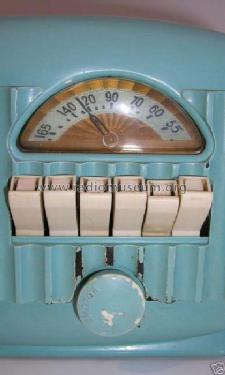

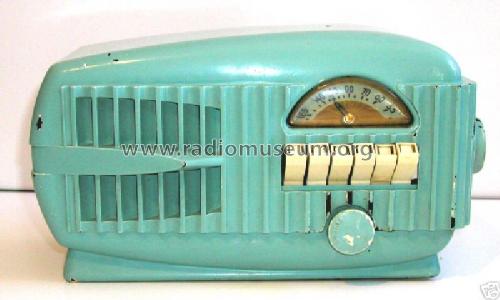

  • The Belmont model 6D121 is quite common but often sprayed over with a non original color - like the green one we show here. They even get sprayed in two colors - what looks nice but reduces the value for a collector. See also 6D111, 6D130 etc. and Series B models.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 17 = 1948 and before
