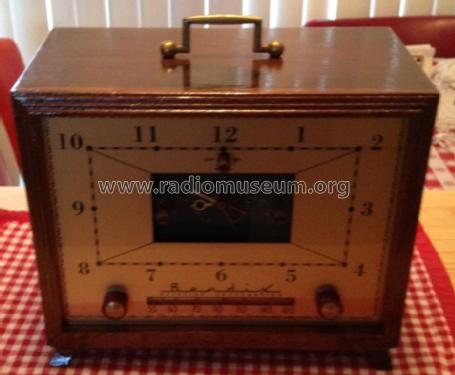

For model 753F "The Cascade", Bendix Radio, Baltimore:
eBay seller: tnorthup (USA). #6612636540
Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio, Baltimore
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Reception principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Model: 753F "The Cascade" - Bendix Radio, Baltimore
Material Wooden case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes Color=Cherry
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Beitman Radio Diagrams Vol. 14, 1954
Mentioned in Collector's Guide to AR6.Ed. Slusser tube
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
