• Country
• United States of America (USA)

• Manufacturer / Brand
• Capehart Corp.; Fort Wayne, IN - see also Farnsworth

• Year
• 1930/1931

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 34993

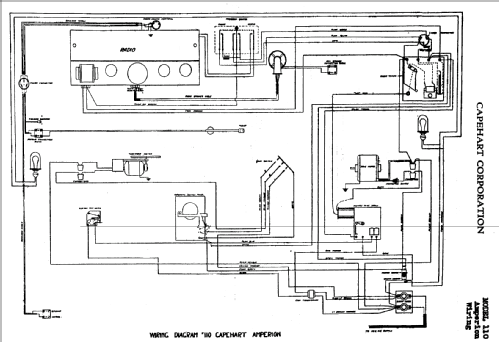

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles (separate order for 25 or 50 cycles), 110 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Amperion 110 - Capehart Corp.; Fort Wayne, IN

• Shape
• Console with any shape - in general

• Notes

• Coin operated phono.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• The Incomparable Capehart
