Analog Multimeter CITO 38

Analog Multimeter CITO 38; Chinaglia Dino (ID = 1130300) Equipment Analog Multimeter CITO 38; Chinaglia Dino (ID = 1130301) Equipment
Use red slider bar for more.
Analog Multimeter CITO 38; Chinaglia Dino (ID = 1130300) Equipment

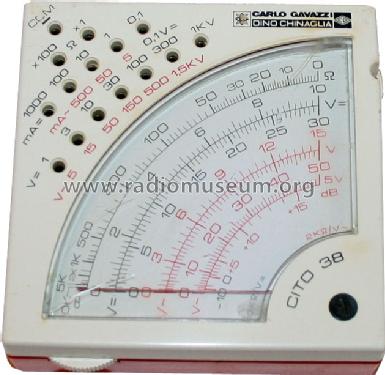

Chinaglia Dino: Analog Multimeter CITO 38 [Equipment] ID = 1130300 630x613
Select picture or schematic to display from thumbnails on the right and click for download.
For model Analog Multimeter CITO 38, Chinaglia Dino Elettrocostruzioni; Belluno

Country:  Italy
Manufacturer / Brand:  Chinaglia Dino Elettrocostruzioni; Belluno
Year: 1975 ?? Type: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analog Multimeter CITO 38 - Chinaglia Dino
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 30 x 90 mm / 3.5 x 1.2 x 3.5 inch
Notes VoltDC ranges 0,1, 1, 3, 10, 30, 100, 300, 1000 Volts; AmpereDC ranges 0.1 mA, 1 mA, 10, 100, 1000 mA; VoltAC ranges 5, 15, 50, 150, 500, 1500 Volts; AmpereAC ranges 5, 50, 500 mA; Ohms ranges x 1, x 100 Ohms.
Net weight (2.2 lb = 1 kg) 0.090 kg / 0 lb 3.2 oz (0.198 lb)

Model page created by Danko Tkalec. See "Data change" for further contributors.
