• Country
• France

• Manufacturer / Brand
• Clarville (CSF); Paris, Levallois-Perret

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 250642

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL82

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Power out
• 4 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

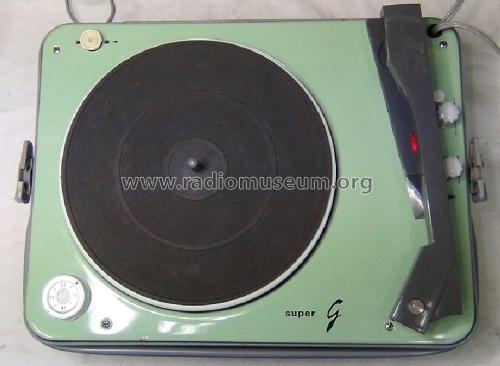

• Model: Électrophone Super G - Clarville CSF; Paris,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 150 x 260 mm / 13.4 x 5.9 x 10.2 inch

• Notes

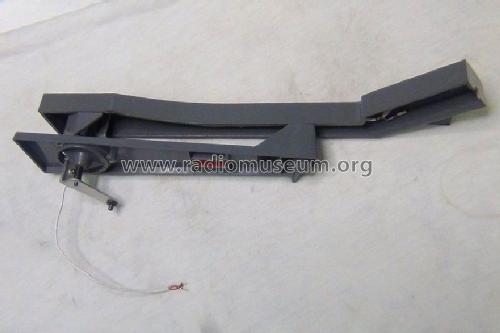

• Électrophone monaural Super G avec platine 4 vitesses 16, 33, 45 et 78 tours/min, à arrêt automatique. Tête piézoélectrique reversible à deux safirs microsillon et 78 tours. Commande de volume avec marche/arrêt et tonalité.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Mentioned in
• - - Manufacturers Literature
