• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245853

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

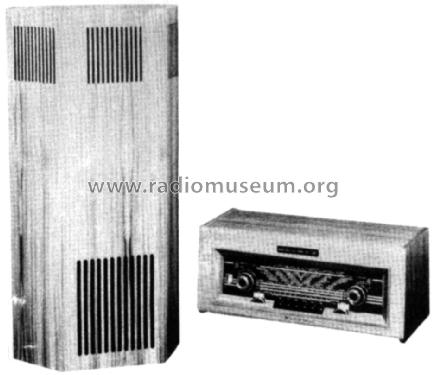

• Model: Conserton V6001 - Stern & Stern Concerton /

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 950 x 825 x 375 mm / 37.4 x 32.5 x 14.8 inch

• Notes

• Mono-Radio mit großer externer Stand-Lautsprecher-Box. Radio und Lautsprecher-Box mit Teakholz-Gehäuse. Lautsprecher-Box mit 4 eingebauten Lautsprechern, die schräg angeordnet sind und in verschiedene Richtungen abstrahlen.

  Mono-radio med stora externa stand-högtalare box. Radio-och högtalarlåda med teakhuset. Högtalare låda med fyra inbyggda högtalare, som är arrangerade snett och strålar i olika riktningar.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
