Compact Disc Player DCD-500AE

Denon (Marke / brand)

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Denon (Marke / brand)

Year
2006

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
219096

Schematics

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (3)

Denon Marke / brand Compact Disc Player DCD-500AE (2)

Denon Marke / brand Compact Disc Player DCD-500AE (2)

Denon Marke / brand Compact Disc Player DCD-500AE (2)
Ebay item no. 121899701864 seller bei_daniel

Denon Marke / brand Compact Disc Player DCD-500AE (2)
Ebay item no. 121899701864 seller bei_daniel

Denon Marke / brand Compact Disc Player DCD-500AE (2)
Ebay item no. 121899701864 seller bei_daniel

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)

Power type and voltage
Alternating Current supply (AC) / 230 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Compact Disc Player DCD-500AE - Denon Marke / brand

Shape
Book-shelf unit.

Dimensions (WHD)
434 x 107 x 279 mm / 17.1 x 4.2 x 11 inch

Notes

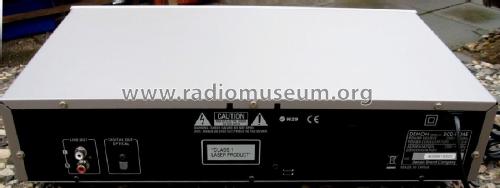

A stereo hi-fi compact disc player in a black or silver metal case with remote control (RC-1028). Line output RCA sockets, digital optical output connector. Jack for headphones.

Functions
Direct Search
Auto Search
Manual Search
Program Play of up to 25 tracks
Program Call
Repeat Play
Random Play
Display Dimmer

Specification
Channels:                   2
Playable frequency range: 2 Hz - 20 kHz
S/N:                                 105 dB
Dynamic range:               98 dB
Harmonic distortion:           0.003 % (1 kHz)
Wow & flutter:              Below measurable limits
Output level:                  2.0 V (10 kΩ/kohms)
Signal type:                16-bit linear PCM
Sampling frequency:        44.1 kHz
Digital output
Optical:                    -15 to -21 dBm
Emission wavelength:         660 nm
Power consumption:           13 W

Versions/Power Requirements
230V AC 50Hz

Net weight (2.2 lb = 1 kg)
4 kg / 8 lb 13 oz (8.811 lb)

Price in first year of sale
199.95 GBP

Mentioned in
-- Original prospect or advert (Denon 2006 General Catalogue)

Literature/Schematics (1)
- - Manufacturers Literature (Operating Instructions DCD-500AE CD Player)
