Stereo Amplifier WS-432

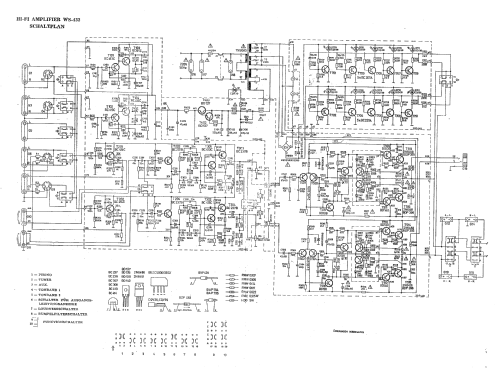

Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 1423778) Ampl/Mixer
Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556418) Ampl/Mixer Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556430) Ampl/Mixer
Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556426) Ampl/Mixer Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556419) Ampl/Mixer
Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556421) Ampl/Mixer Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556427) Ampl/Mixer
Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556428) Ampl/Mixer Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556429) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier WS-432; Unitra-Rzeszów, (ID = 556418) Ampl/Mixer
Unitra-Rzeszów,: Stereo Amplifier WS-432 [Ampl/Mixer] ID = 556418 933x186
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier WS-432, Unitra-Rzeszów, Rzeszow:
Thanks for Mr.Gömör Géza Budapest, Hungary! More info:.oldradio.tesla.hu/szetszedtem/257unitraamplifier/erosito.htm

Country:  Poland
Manufacturer / Brand:  Unitra-Rzeszów, Rzeszow
Year: 1986 ?? Type: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 44: BC237 BC138 BC307 BC308 BC413 BC414 BD135 BD137 BD139 BD140 2N6491 2N6488
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier WS-432 - Unitra-Rzeszów, Rzeszow
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 90 x 260 mm / 17.3 x 3.5 x 10.2 inch
Notes

Der Verstärker WS 432 enthält 44 Transistoren. Die Endstufe ist komplementär mit den Transistoren 2N6488 und 2N6491 aufgebaut.

Frequenzumfang: 20–20000 Hz ±1,5 dB.

Jeder Transistortyp nur 1x gelistet.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
