P51 Ch= 430

• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1973–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 108698

• Picture
• Schematics

Previous Next

Previous Next

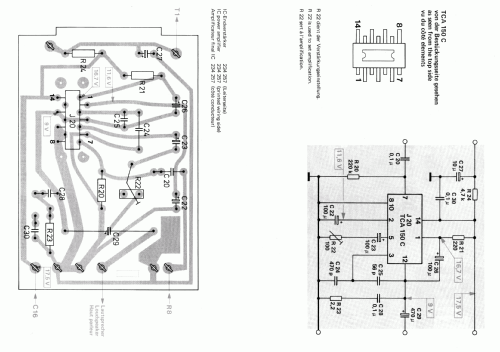

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: P51 Ch= 430 - Dual, Gebr. Steidinger; St.

• Shape

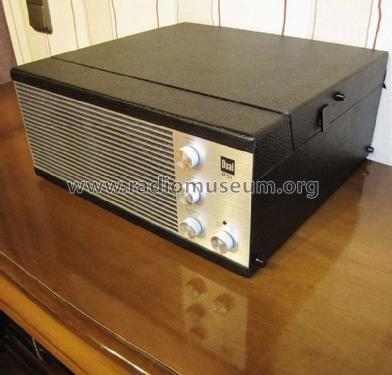

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 373 x 160 x 350 mm / 14.7 x 6.3 x 13.8 inch

• Notes

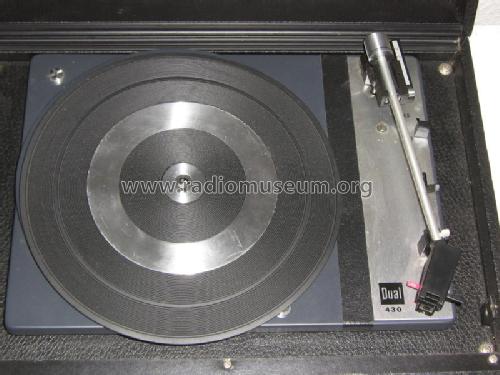

• Phono-Chassis = 430 mit Stereo-Keramiksystem CDS660. 1973/74 mit Phono-Chassis = 420 mit Keramiksystem CDS650 ,lieferbar in anthrazit mit Metallgrill. Anschlußbuchse für Tonbandgerät oder separaten Stereo-Verstärker. Ein Gerät auch für die Planet UE Handelsgruppe in 1977.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Price in first year of sale
• 274.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Winkler. See "Data change" for further contributors.
