Universalmesser IV (4)

Universalmesser IV ; EAW, Elektro- (ID = 319888) Equipment
Universalmesser IV ; EAW, Elektro- (ID = 115010) Equipment Universalmesser IV ; EAW, Elektro- (ID = 319891) Equipment
Universalmesser IV ; EAW, Elektro- (ID = 311037) Equipment Universalmesser IV ; EAW, Elektro- (ID = 319889) Equipment
Universalmesser IV ; EAW, Elektro- (ID = 319890) Equipment Universalmesser IV ; EAW, Elektro- (ID = 454522) Equipment
Universalmesser IV ; EAW, Elektro- (ID = 454523) Equipment Universalmesser IV ; EAW, Elektro- (ID = 454525) Equipment
Universalmesser IV ; EAW, Elektro- (ID = 537329) Equipment Universalmesser IV ; EAW, Elektro- (ID = 912562) Equipment
Use red slider bar for more.
Universalmesser IV ; EAW, Elektro- (ID = 115010) Equipment

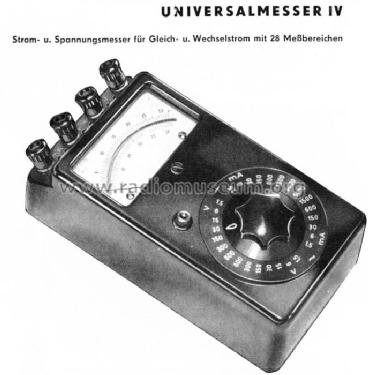

EAW, Elektro-: Universalmesser IV [Equipment] ID = 115010 687x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universalmesser IV (4), EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1959 ? Category: Service- or Lab Equipment
schematic requested
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universalmesser IV - EAW, Elektro-Apparate-Werke,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 106 x 78 x 198 mm / 4.2 x 3.1 x 7.8 inch

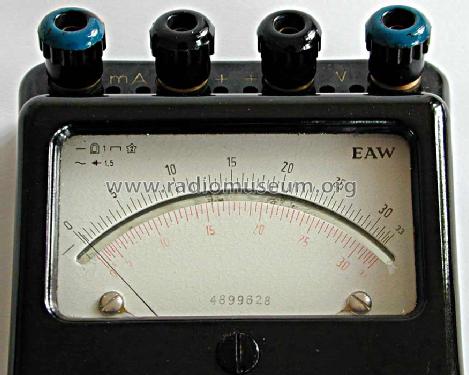

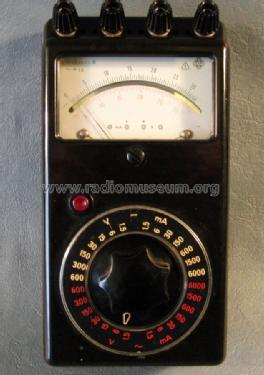

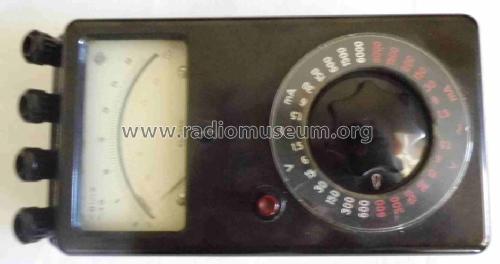

Notes Form wie UNI II, Weiterentwicklung des UNI I. Strom- und Spannungsmesser für Gleich- und Wechselstrom mit 28 Messbereichen, 1,5 V-600 V und 1,5 mA-6 A; 20 kOhm/V 1 % bei =, 2 kOhm/V 1,5 % bei ~ 16-10000 Hz. Kernmagnet-Drehspulmesswerk mit Spannband.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Collectors' prices
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
