U764

U764; Ekco India, National (ID = 902243) Radio U764; Ekco India, National (ID = 902240) Radio
U764; Ekco India, National (ID = 902241) Radio U764; Ekco India, National (ID = 902242) Radio
U764; Ekco India, National (ID = 902245) Radio
Use red slider bar for more.
U764; Ekco India, National (ID = 902243) Radio
Ekco India, National: U764 [Radio] ID = 902243 933x803
Select picture or schematic to display from thumbnails on the right and click for download.
For model U764, Ekco India, National Ekco, Bombay

Country:  India
Manufacturer / Brand:  Ekco India, National Ekco, Bombay
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UABC80 UL84 UY85
schematic requested
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 160-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: U764 - Ekco India, National Ekco,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 270 x 280 mm / 14.2 x 10.6 x 11 inch

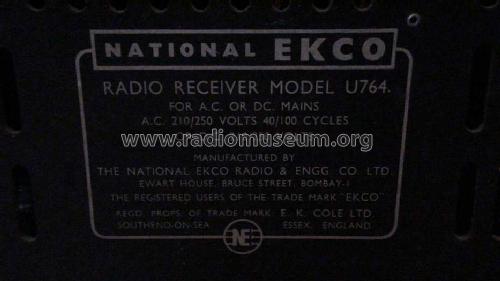

Notes Set is specified for AC 210-250 V, 40-100 Hz, and DC 210-250 V.
Wavebands: MW, SW1 13-31 m, SW2 31-90 m.

Model page created by Robert Kooijman. See "Data change" for further contributors.
