For model RAD15, Fidelity Radio Ltd.; London:
My Fidelity RAD15 MW/LW/VHF transistor radio ca. 1970.

Country:  Great Britain (UK)
Manufacturer / Brand:  Fidelity Radio Ltd.; London
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF195 BF195 or. BF194 BF195 BC159 BF194 BC159 BC149 AC127 AC128
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: RAD15 - Fidelity Radio Ltd.; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 12.5 x 7.25 x 3.5 inch / 318 x 184 x 89 mm
Notes

Sockets for car aerial and earphone/tape recorder. Released May 1969. PP9 9 volt battery.:

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 23.00 GBP
Source of data -- Collector info (Sammler)

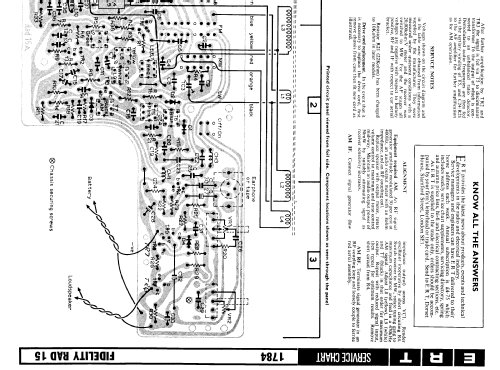

Literature/Schematics (1) ERT Service Chart 1784

Model page created by John Koster. See "Data change" for further contributors.
