• Year
  • 1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109350

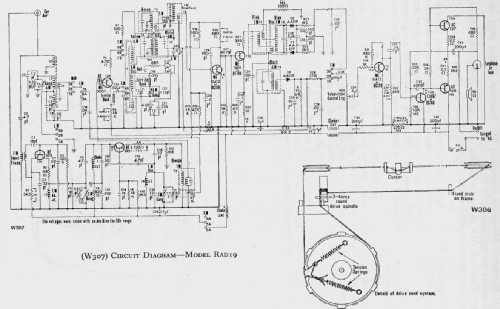

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: RAD19 - Fidelity Radio Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 227 x 130 x 60 mm / 8.9 x 5.1 x 2.4 inch
  • Notes
  • Wooden end pieces.
    Volume control - telescopic antenna - carrying handle - external antenna jack - tape / earphone jack - LW / MW / FM push buttons. FM range 87.5 to 108 MHz

    (controllo volume - antenna telescopica esterna - maniglia di trasporto - presa per antenna esterna - presa tape/earphone - commutatore a tasti LW/MW/FM.)



    Use PP9 Battery

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Price in first year of sale
  • 14.40 gbp
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
