G213A

G213A; Geloso SA; Milano (ID = 143711) Ampl/Mixer

G213A; Geloso SA; Milano (ID = 143712) Ampl/Mixer

G213A; Geloso SA; Milano (ID = 279683) Ampl/Mixer

G213A; Geloso SA; Milano (ID = 890986) Ampl/Mixer
G213A; Geloso SA; Milano (ID = 1695685) Ampl/Mixer G213A; Geloso SA; Milano (ID = 187836) Ampl/Mixer
G213A; Geloso SA; Milano (ID = 187837) Ampl/Mixer G213A; Geloso SA; Milano (ID = 187840) Ampl/Mixer
G213A; Geloso SA; Milano (ID = 143710) Ampl/Mixer G213A; Geloso SA; Milano (ID = 187838) Ampl/Mixer
G213A; Geloso SA; Milano (ID = 187839) Ampl/Mixer G213A; Geloso SA; Milano (ID = 279682) Ampl/Mixer
G213A; Geloso SA; Milano (ID = 1541116) Ampl/Mixer G213A; Geloso SA; Milano (ID = 1611296) Ampl/Mixer
Use red slider bar for more.
G213A; Geloso SA; Milano (ID = 1695685) Ampl/Mixer
Geloso SA; Milano: G213A [Ampl/Mixer] ID = 1695685 930x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model G213A, Geloso SA; Milano:
I_Geloso_G213A

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1949–1955 Type: Audio Amplifier or -mixer
Valves / Tubes 5: 12SL7GT 12SL7GT 6V6G 6V6G 5V4G
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: G213A - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 328 x 178 x 194 mm / 12.9 x 7 x 7.6 inch
Notes Amplificatore bassa frequenza 12-15 W.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Collectors' prices
Mentioned in Bollettino Tecnico Geloso N. 40

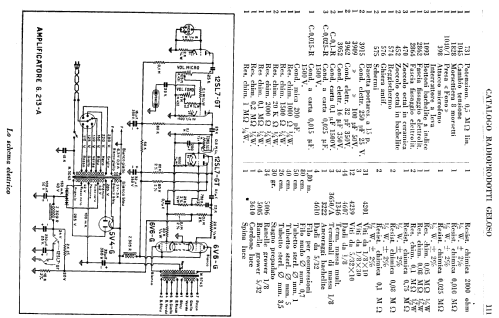

Literature/Schematics (1) Catalogo Generale Radioprodotti Geloso 1949, 1953, 1954-1955

Model page created by Hugo Sneyers. See "Data change" for further contributors.

All listed radios etc. from Geloso SA; Milano
Here you find 674 models, 578 with images and 523 with schematics for wireless stes etc. French TSF for Télégraphie sans fil.
