Registratore a transistor G570 (G.570)


Country: Italy Manufacturer/Brand: Geloso SA; Milano
Year: 1968 Type: Recorder and/or PlayerMusic/speech recorder and/or -player.
Tonspeichergerät im weiteren Sinn, also auch Kassettengerät, CD-Player, Tonbandmaschine, Video-Maschine etc. möglich.
Mod.-ID = 98425 previous | Result List | next | New search for Radios etc. Schematics etc.: 4 (for members) Principle Audio-AmplificationAF (audio) amplification only, one, two or three stages etc.
Niederfrequenzverstärkung.
Meist als «Nachsatz» zu einem Empfänger verwendet, um das Tonsignal zu verstärken - z.B. für Lautsprecherwiedergabe statt Kopfhörer.

Specialities Tape RecorderTonbandgerät oder Apparat mit Tonbandgerät.
Power type and voltage Line AND Batteries (any type) / 110/220 / (8 × 1,5) VoltLine supply as well as battery supply possible.
Alimentation secteur et alimentation de batterie possible.
Netz- und Batteriespeisung möglich.
Das Gerät - meist ein Reiseapparat - lässt sich aus dem Netz oder aus Batterien speisen, wobei es sich um Akkus oder Batterien handeln kann. Grosse Reiseempfänger ab Mitte 50er Jahre können einen im Gerät aufladbaren NiCd-Akku enthalten, der nun auslaufen kann

Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
/ 1.5 W

www.radiomuseum.org Model: Registratore a transistor G570 (G.570) Material Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.

Shape Portable, e.g. Portable Radio (with or without mains > 8 inch).
Dimensions (WHD) 265 x 100 x 230 mm / 10.4 x 3.9 x 9.1 inch
Transistors 6:

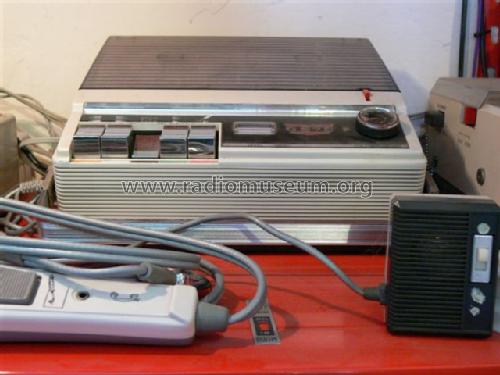

Notes motore in dc con regolatore elettronico, due velocità 9,5-4,75 cm/sec, registrazione a doppia traccia, microfono T56 dinamico a bobina mobile con interruttore, altoparlante ellittico con magnete speciale. Transistor: BC113 BC113 BC154 BC154 AC187 AC188
Net weight 3.2 kg / 112.9 oz
Price in first year of sale 42000 lire
Collectors prices 3 Collector prices (for members)
Mentioned in Bollettino Tecnico GelosoBollettino Tecnico Geloso; Geloso (N. 106, primavera 1968, pag 3)

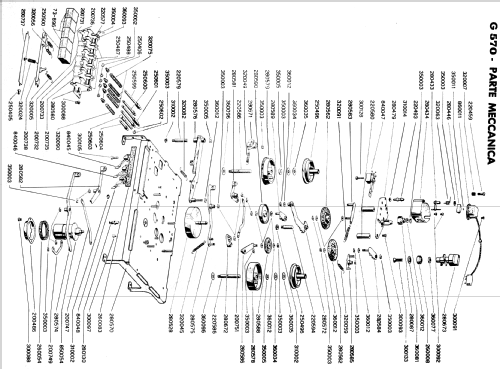

Literature/Schematics Bollettino Tecnico GelosoBollettino Tecnico Geloso; Geloso (N. 106, primavera 1968, pag. 15)

This model was suggested by Giuseppe Antonio Tusini.
