• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960 ??

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 185105

• • alternative name: Heath Company

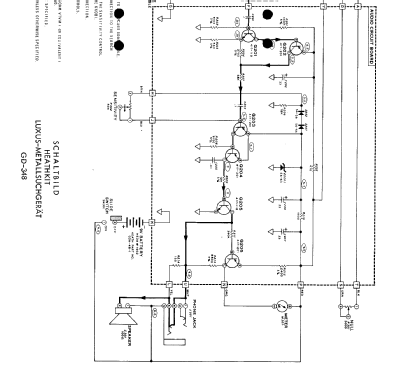

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Special principle (see notes); something special ? Please give information (notes)

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Metallsuchgerät GD-348 - Heathkit Brand, Heath Co.;

• Notes
• Transistoren: 417-201 417-94 417-118 417-201 417-118 417-201 417-201 417-201 417-118 417-201

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Source of data

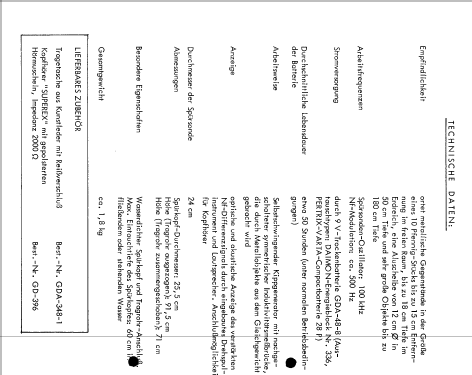

• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
