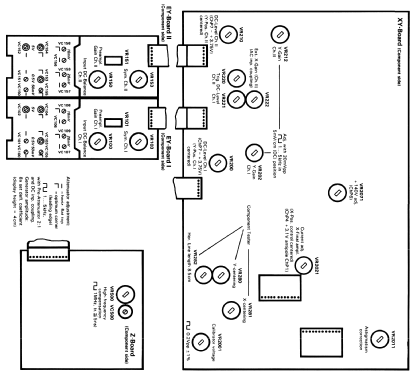

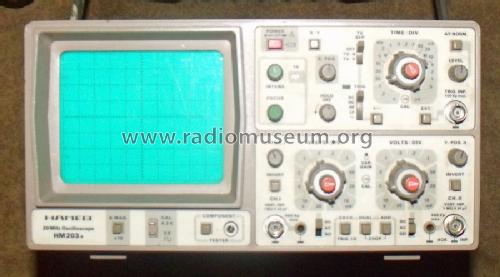

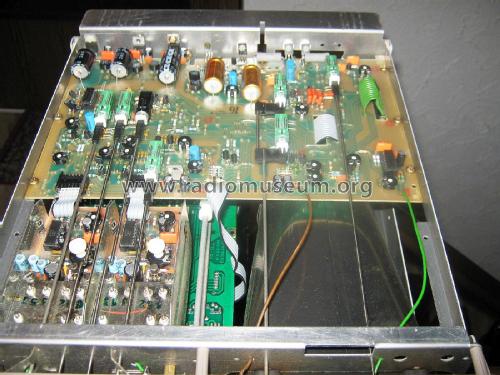

Oszilloskop HM 203-4a

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690782) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690786) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690787) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690829) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690830) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690831) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690832) Equipment

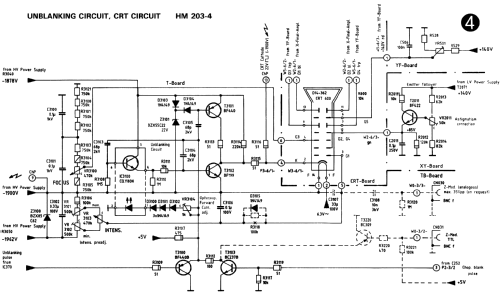

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690833) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690834) Equipment

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 690835) Equipment
Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935505) Equipment Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 512545) Equipment
Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 512546) Equipment Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 514644) Equipment

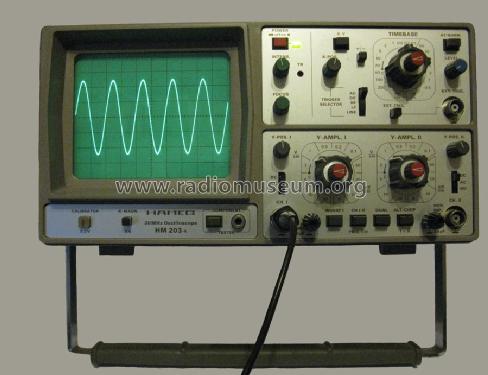

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 565506) Equipment Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 565507) Equipment

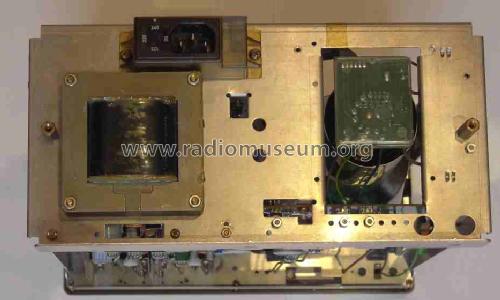

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935507) Equipment Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935508) Equipment
Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935509) Equipment Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935511) Equipment
Use red slider bar for more.

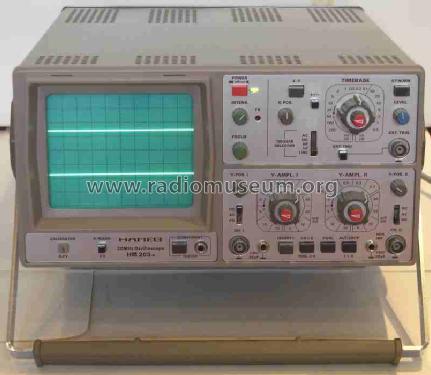

Oszilloskop HM 203-4a; HAMEG GmbH, (ID = 935505) Equipment
HAMEG GmbH,: Oszilloskop HM 203-4a [Equipment] ID = 935505 805x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszilloskop HM 203-4a, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1982 Category: Service- or Lab Equipment
Valves / Tubes 1: D14-362GY/93 or D14-362GM/93
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 ; 125 ; 220 ; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszilloskop HM 203-4a - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 145 x 380 mm / 11.2 x 5.7 x 15 inch
Notes Hameg HM 203-4, 20 MHz Dual Trace Oscilloscope;
20 MHz (-3 dB), 28 MHz (-6 dB), 2 kV Beschleunigungsspannung, 10 x 8 cm Schirm.
Y-Verstärker max.Empfindlichkeit unkalibriert 2 mV/cm; kalibrierte Bereiche: 5 - 10 - 20 - 50 - 100 - 200 - 500 mV/cm - 1 - 2 - 5 - 1 - 20 V/cm;
X: 40 ns/cm - 0,2 s/cm;
Y Kanal II als X schaltbar mit gleichen Daten;
Kanalumschaltung alt und chop.; Kanalsumme und -differenz (Kanal I invertierbar).
Komponententester und Tastkopfkalibrator.
Farbe: techno-braun. Gegen Aufpreis Nachleuchtröhre D14-362GM/93.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
