• Country
• Germany

• Manufacturer / Brand
• Hanseatic ,(Marke)

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161200

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

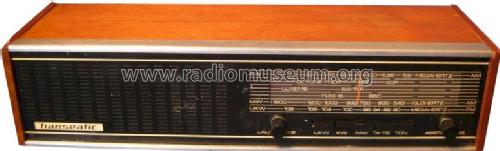

• Model: Transistor Tischradio - Hanseatic ,Marke

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 110 x 145 mm / 18.9 x 4.3 x 5.7 inch

• Notes
• Hanseatic;
  Transistor Tischradio,
  UKW bis 108 MHz,
  KW: ~5.9 - 6.2 MHz Europaband,
  Mono-Gerät, Ton Taste, 15 W Leistungsaufnahme, DIN Buchsen für Antennen, TB-TA & ext. Lautsprecher. Wohl DDR-Fertigung für den Export.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
