Amateur Receiver HR-10B

Amateur Receiver HR-10B; Heathkit Brand, (ID = 124914) Amateur-R

Amateur Receiver HR-10B; Heathkit Brand, (ID = 124916) Amateur-R
Amateur Receiver HR-10B; Heathkit Brand, (ID = 767230) Amateur-R Amateur Receiver HR-10B; Heathkit Brand, (ID = 165563) Amateur-R
Amateur Receiver HR-10B; Heathkit Brand, (ID = 165564) Amateur-R Amateur Receiver HR-10B; Heathkit Brand, (ID = 124649) Amateur-R
Amateur Receiver HR-10B; Heathkit Brand, (ID = 165561) Amateur-R Amateur Receiver HR-10B; Heathkit Brand, (ID = 352712) Amateur-R
Amateur Receiver HR-10B; Heathkit Brand, (ID = 352713) Amateur-R Amateur Receiver HR-10B; Heathkit Brand, (ID = 816143) Amateur-R
Use red slider bar for more.
Amateur Receiver HR-10B; Heathkit Brand, (ID = 767230) Amateur-R

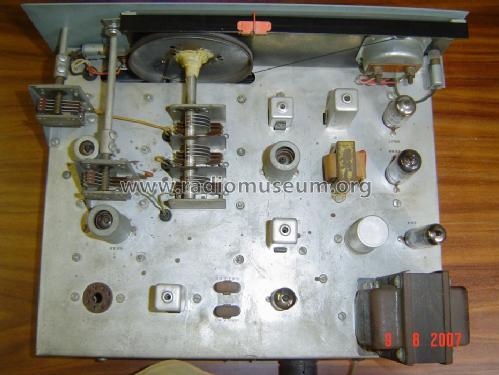

Heathkit Brand,: Amateur Receiver HR-10B [Amateur-R] ID = 767230 933x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amateur Receiver HR-10B, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Quelle Bechstein.

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1967–1975 ? Type: Amateur-Receiver
Valves / Tubes 7: 6BZ6 6EA8 6BA6 6EA8 6BJ7 6EB8 6X4
Principle Superhet with RF-stage; ZF/IF 1681 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 105-250 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Amateur Receiver HR-10B - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.75 x 6.5 x 11.5 inch / 349 x 165 x 292 mm
Notes Variant of HR-10 but different color to match Transmitter DX-60B.
Frequency range: 3.5-4 MHz; 7-7.3 MHz; 14-14.35 MHz; 21-21.5 MHz; 28-29.7 MHz. Sold in kit-form.
Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 75.00 $
Collectors' prices
Source of data Shortwave Receivers - Past & Present; Fred Osterman, N8EKU
Mentioned in Heathkit-A guide-Chuck Penson
Literature/Schematics (1) Communication Receivers

Model page created by Hugo Sneyers. See "Data change" for further contributors.
