VTVM IM-18

• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1968–1976

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 72695

• • alternative name: Heath Company

• Picture

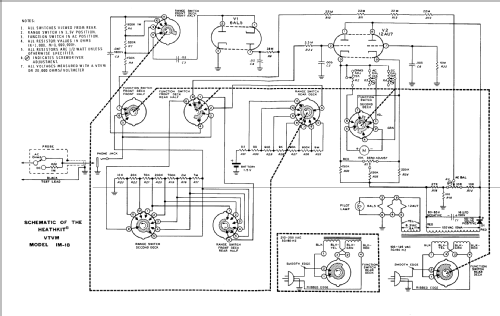

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AL5 12AU7

• Power type and voltage
• Alternating Current supply (AC) / 105-250 & 1,5 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: VTVM IM-18 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 119 x 187 x 104 mm / 4.7 x 7.4 x 4.1 inch

• Notes
• Vacuum Tube Voltmeter.

• Net weight (2.2 lb = 1 kg)
• 1.588 kg / 3 lb 8 oz (3.498 lb)

• Price in first year of sale
• 30.00 $
