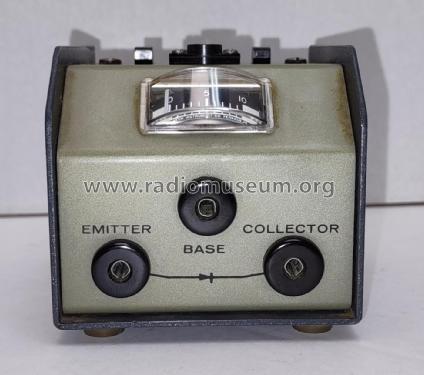

Transistor Checker IT-10

Transistor Checker IT-10; Heathkit Brand, (ID = 656211) Equipment
Transistor Checker IT-10; Heathkit Brand, (ID = 656208) Equipment Transistor Checker IT-10; Heathkit Brand, (ID = 656209) Equipment
Use red slider bar for more.
Transistor Checker IT-10; Heathkit Brand, (ID = 656208) Equipment
Heathkit Brand,: Transistor Checker IT-10 [Equipment] ID = 656208 300x445
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Checker IT-10, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Quelle Bechstein

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1961 ? Type: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transistor Checker IT-10 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 3.25 x 3.25 x 3.75 inch / 83 x 83 x 95 mm
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann. See "Data change" for further contributors.
