• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1984–1991 ?

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 90648

• • alternative name: Heath Company

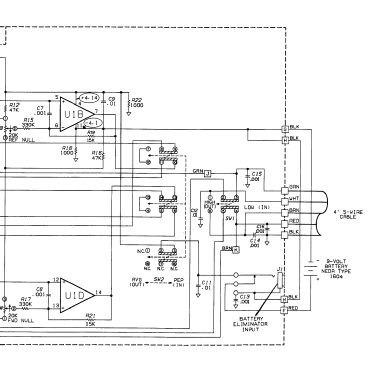

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Wattmeter HM-2140A - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 7.5 x 4.25 x 6.5 inch / 191 x 108 x 165 mm

• Notes
• ICs: 1

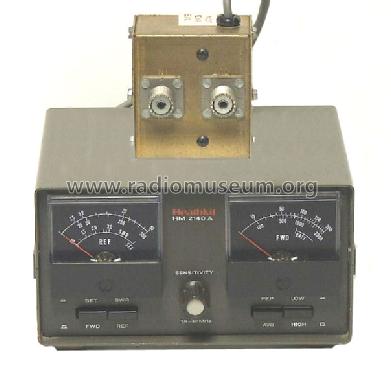

  Heathkit Wattmeter HM-2140A.
  Frequency range: 160 to 10 m; measuring range: up to 200 W and up to 2000 W.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 100.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
