- Country
- Germany
- Manufacturer / Brand
- Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 14965
-
- alternative name: Gerätebau Limbach VEB
- Brand: VEB Elektromechanik Mittweida
Ausstellung 2014 in Limbach-Oberfrohna.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

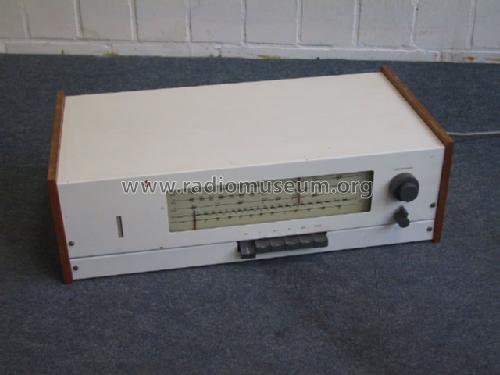

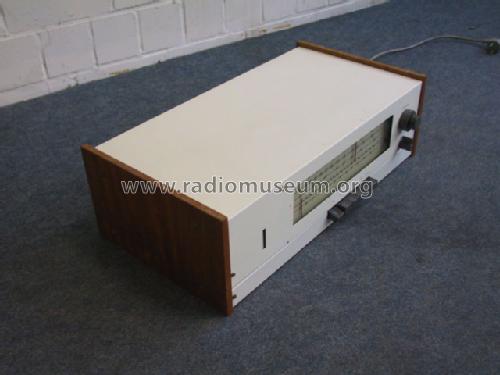

- Model: RK-Tuner - Heli Gerätebau, Hempel KG;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 525 x 165 x 280 mm / 20.7 x 6.5 x 11 inch
- Notes
- rk3 stereo ohne NF-Teil; weisse Front aus Stahlblech
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Price in first year of sale
- 625.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
- Other Models
-
Here you find 119 models, 108 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
Collections
The model RK-Tuner is part of the collections of the following members.
Forum contributions about this model: Heli Gerätebau,: RK-Tuner
Threads: 1 | Posts: 1
wie bei vielen anderen, frühen HELI-Stereo-Geräten ist auch hier das Schaltbild des Stereodecoders nicht komplett, es fehlt C11. Der korrekte Plan findet sich unter StD4.
Hartmut Schmidt, 10.Nov.09
