Model: SA-39 (SA39)
Antique radios, Old Time Radios
SA-39 (SA39)
Country:
United States of America (USA)
Manufacturer/Brand:
Hudson Motor Car Co.
Year: 1940 ??
Type:
Car RadioAutoradio - ist nicht immer als solches bezeichnet, da erst später mit Code unterschieden.
Mod.-ID = 44776
previous
|
Result List
|
next
|
New search for Radios etc.

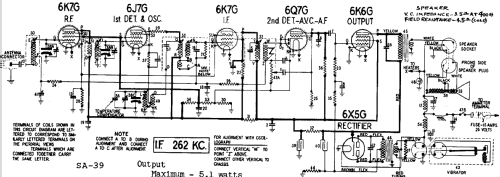

Schematics etc.: 2 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 262 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
6 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
Storage Battery for all / 6 Volt
Loudspeaker/pwr.out
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)Electro magnetic dynamic loudspeaker (moving-coil principle by Rice-Kellog) with field excitation coil - mostly used as choke.
Haut parleur dynamique avec bobine d`excitation - plus souvent aussi utilisé pour le self.
Elektrodynamischer Lautsprecher mit Erregerspule für das Magnetfeld (Fremderregung), meist gleichzeitig als Siebglied dienend.
/ 2.6 W
/ Ø 15.2 cm = 6 inch
www.radiomuseum.org
Model: SA-39 (SA39)
Valves / Tubes
6:
6K7G
(more
for members)
Notes
Five push-button station selectors. Built-in Vibrator for B+
External source of data
Ernst Erb
Circuit diagram reference
Rider's Perpetual, Volume 11Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
No further information
on
SA-39 (SA39) (Hudson Motor Car Co.)
