• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8958

• • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• B424S B543S

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

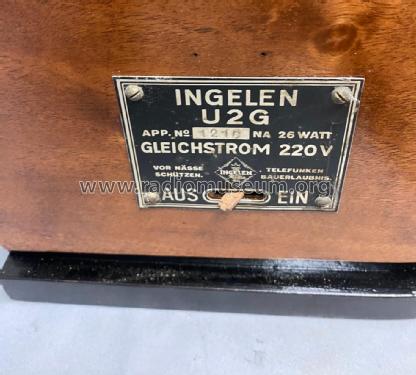

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles).

• Material
• Wooden case

• from Radiomuseum.org
• Model: U2G - Ingelen, Elektrotechnische

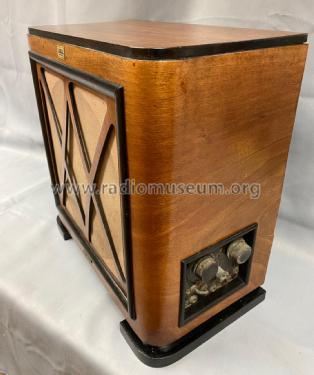

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• «Grosskraft-LS»

• Price in first year of sale
• 325.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
