HiFi 80 Tuner/Amplifier 8033

HiFi 80 Tuner/Amplifier 8033; ITT Schaub-Lorenz (ID = 1079840) Radio HiFi 80 Tuner/Amplifier 8033; ITT Schaub-Lorenz (ID = 251069) Radio
HiFi 80 Tuner/Amplifier 8033; ITT Schaub-Lorenz (ID = 251070) Radio HiFi 80 Tuner/Amplifier 8033; ITT Schaub-Lorenz (ID = 1079841) Radio
Use red slider bar for more.
HiFi 80 Tuner/Amplifier 8033; ITT Schaub-Lorenz (ID = 1079840) Radio

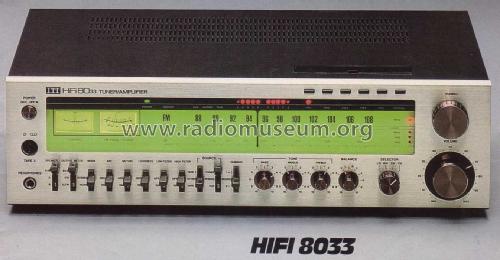

ITT Schaub-Lorenz: HiFi 80 Tuner/Amplifier 8033 [Radio] ID = 1079840 798x367
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi 80 Tuner/Amplifier 8033, ITT Schaub-Lorenz:

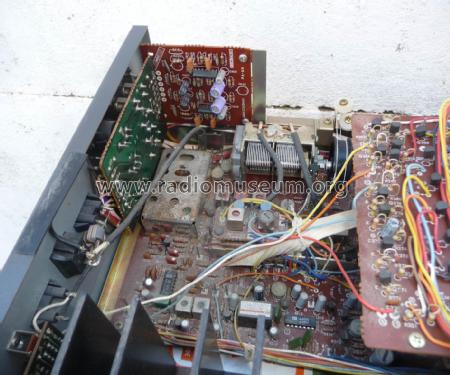

Picture from an ended ebay auction № 300598917212, created by franxpost

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1978 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 110 W (unknown quality)
from Radiomuseum.org Model: HiFi 80 Tuner/Amplifier 8033 - ITT Schaub-Lorenz
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 480 x 130 x 350 mm / 18.9 x 5.1 x 13.8 inch
Notes Eingänge: Phono, Aux, 2× Tape, 6 Lautsprecheranschlüsse. Anschlüsse in DIN und Cinch. Skalenbeleuchtungshelligkeit regulierbar. Receiver mit 2 x 55 Watt Sinus an 4 Ohm, 5 UKW-Festsender, Mittenabstimmung, LED-Anzeige der Verstärkerleistung, Tape-Dubbing-Einrichtung, Loudness-Schalter, Rausch- und Rumpelfilter.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Collectors' prices
Mentioned in -- Original-Prospect (ITT Technik der Welt Gesamtprogramm 78/79 Seiten 56, 57 und 109)

Model page created by Peter Böhm. See "Data change" for further contributors.

All listed radios etc. from ITT Schaub-Lorenz
Here you find 521 models, 450 with images and 289 with schematics.
