Europe 59

Europe ; Kapsch, Telephon- (ID = 145936) Television

Europe ; Kapsch, Telephon- (ID = 145937) Television
Europe ; Kapsch, Telephon- (ID = 141341) Television Europe ; Kapsch, Telephon- (ID = 571717) Television
Europe ; Kapsch, Telephon- (ID = 571718) Television
Europe ; Kapsch, Telephon- (ID = 141341) Television

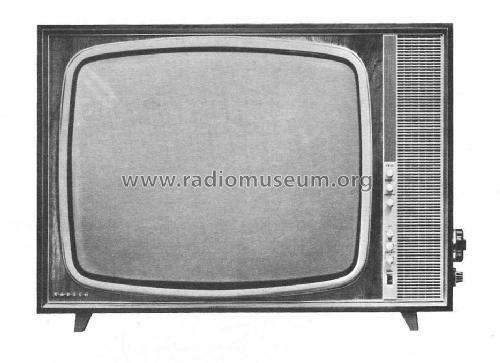

Kapsch, Telephon-: Europe [Television] ID = 141341 933x678
For model Europe 59, Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien

Country:  Austria
Manufacturer/Brand:  Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Year: 1966 Type: Television Receiver (TV)
Valves / Tubes 13: PCC189 PCF86 PCF201 PCF200 PFL200 PCF80 PCL86 PCF802 PL500 PY88 DY87 PCL85 A59-12W/2
Semiconductors (the count is only for transistors) 2:
Principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Europe [59] - Kapsch, Telephon- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 520 x 370 mm / 28 x 20.5 x 14.6 inch
Notes Fernsehbereich: VHF Band I+III, UHF Band IV/V. 59-cm-Panoramabildröhre.
Net weight (2.2 lb = 1 kg) 27.4 kg / 60 lb 5.6 oz (60.352 lb)
Price in first year of sale 5580 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

All listed radios etc. from Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Here you find 580 models, 469 with images and 336 with schematics.
