Universum 65

Universum 65; Kapsch, Telephon- (ID = 146332) Television

Universum 65; Kapsch, Telephon- (ID = 146333) Television
Universum 65; Kapsch, Telephon- (ID = 141104) Television Universum 65; Kapsch, Telephon- (ID = 141105) Television
Universum 65; Kapsch, Telephon- (ID = 141104) Television

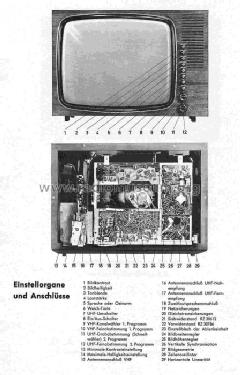

Kapsch, Telephon-: Universum 65 [Television] ID = 141104 908x700
For model Universum 65, Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien

Country:  Austria
Manufacturer/Brand:  Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Year: 1967 Type: Television Receiver (TV)
Valves / Tubes 14: PC900 PCF801 PCL84 PCH200 PCF80 PCF80 PCL86 PCF80 PCL85 PCF802 PL500 PY88 DY87
Semiconductors (the count is only for transistors) 9:
Principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Universum 65 - Kapsch, Telephon- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Fernsehbänder: VHF Band I+III, UHF Band IV/V. 65-cm-Bildröhre A65-11W-S.
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

All listed radios etc. from Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Here you find 580 models, 469 with images and 336 with schematics.
