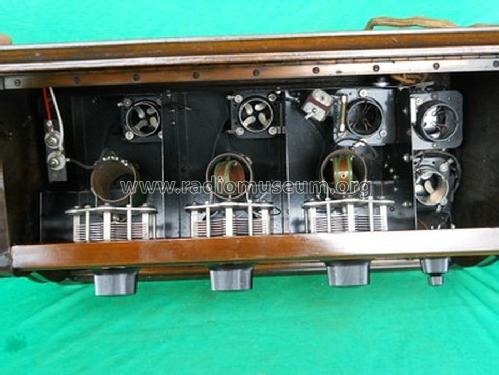

Model: 30

Antique radios, Old Time Radios

30

Country: United States of America (USA) Manufacturer/Brand: King Manufacturing Corp.
Year: 1926 Type: Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs. Mod.-ID = 45521 previous | Result List | next | New search for Radios etc. Schematics etc.: 1 (for members) Principle TRF Tuned-radio-frequency (straight) general
Wave bands n.a.When collecting this field of data I had no information on the wave bands - or this set is not a receiver. Quand je faisait la collection je ne savais rien de ces dates des gammes d`ondes - ou bien l`apparaeil n`est pas un récepteur.
Beim Erfassen dieses Feldes waren mir die Wellenbereiche nicht bekannt - oder der Apparat ist kein Empfänger.
Power type and voltage Storage Battery for filament
www.radiomuseum.org Model: 30 Shape Tablemodel, with any shape - general.
Valves / Tubes 5: (more for members)
Notes Three dials (primary tuning control knobs)
Price in first year of sale 76 $
Collectors prices 1 Collector price (for members)
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-Radio Collector`sGuide 1921-; McMahon, Morgan E.; Vintage Radio, CA90274, USA. (1981)
Circuit diagram reference Rider's Perpetual, Volume 1The Riders Perpetual contains 23 volumes of schematics. They can be ordered at: Alton H. Bowman, 4172 East Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 726
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tubeCollectors Guide to Antique Radios, Fourth Edition, 1997, Marty & Sue Bunis, Collector Books, Paducah, USA. See also the other editions.

No further information on

30 (King Manufacturing Corp.)
