- Country
- Germany
- Manufacturer / Brand
- Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
- Year
- 1969–1971
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 118339

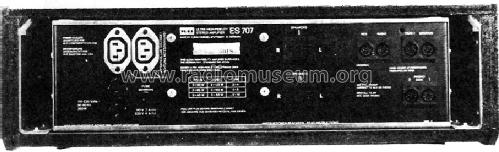

Aus Hersteller-Unterlagen
Q: HiFi-Jahrbuch 7/1974

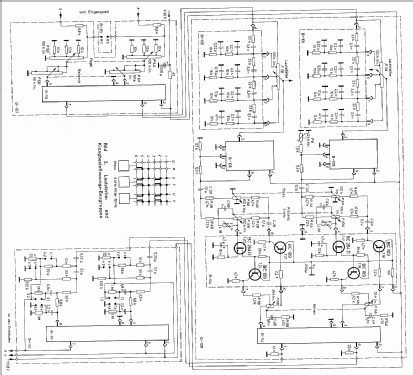

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 180 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: ES 707 - Klein & Hummel; Stuttgart-
- Dimensions (WHD)
- 532 x 160 x 370 mm / 20.9 x 6.3 x 14.6 inch
- Notes
- Elektronische Regelautomatik schützt den Verstärker vor Überlastung durch Kurzschluß im Ausgangsbereich sowie bei ohmscher, kapazitiver und induktiver Überlastung.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Price in first year of sale
- 2,975.00 DM
- Mentioned in
- Funk-Technik (FT) (20/1969, S. 786 / Neuvorstellung, Messebericht Berlin)
- Literature/Schematics (1)
- Funk-Technik (FT) (4/1971, S. 125 - 129 / Beschreibung, Daten, Schema)
- Author
- Model page created by Ingo Gantenbrink. See "Data change" for further contributors.
