Club P; Körting-Radio; (ID = 1267302) Speaker-P
Körting-Radio;: Club P [Speaker-P] ID = 1267302 900x834
Select picture or schematic to display from thumbnails on the right and click for download.
For model Club P, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1939/1940 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Club P - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 340 x 180 mm / 13.4 x 13.4 x 7.1 inch

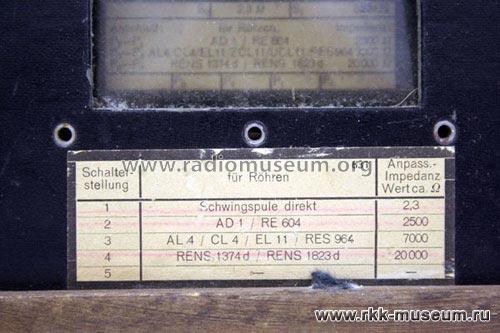

Notes Ausführung im Edelholzgehäuse mit Anpassungstrafo 2,5 kOhm, 7 kOhm, 20 kOhm. Maximalbelastbarkeit: 3 W.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 52.00 RM
Collectors' prices
Source of data Handbuch WDRG 1939

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Here you find 710 models, 551 with images and 404 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
