• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1979/1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 164816

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (160 W max.)

• Material
• Metal case

• from Radiomuseum.org

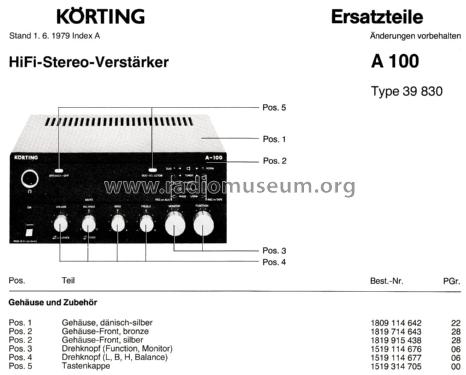

• Model: A-100 Typ: 39830 [Front schwarz] - Körting-Radio; Leipzig, später

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 260 x 105 x 220 mm / 10.2 x 4.1 x 8.7 inch

• Notes

• Abschaltung der Stereo-Lautsprecher bei Kopfhörerbetrieb.

  Körting A-100, Tuner T-100 und Cassetten-Deck C-100 bilden zusammen eine Compact-Anlage.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Mentioned in
• Funkschau (9/1979, S. 513, 514)

• Literature/Schematics (1)

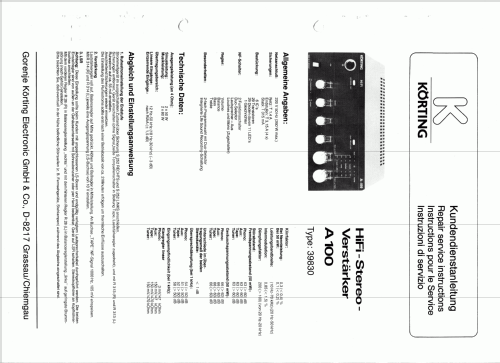

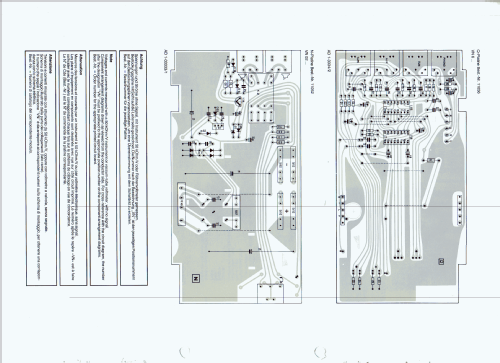

• -- Original-techn. papers.

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
