• Year
  • 1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118569
    • alternative name: Radiotelegraf Works

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 4 / 60 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org

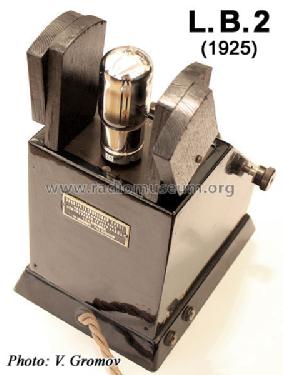

  • Model: LB2 {ЛБ2} - Leningrad Kozitsky Works
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 195 x 175 x 145 mm / 7.7 x 6.9 x 5.7 inch
  • Notes
  • At first named "L.B.2". Coverage 250-25000 meters in two ranges.
    Set may used as simple crystal radio too.
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
